ITEMS
|
FI9818W
|
|
Image Sensor
|
Image Sensor
|
CMOS Sensor
|
|
Display Resolution
|
1280*720 Pixels
|
|
Lens
|
f: 2.8mm, F:2.4
|
|
Min. Illumination
|
0.5Lux
|
|
Viewing Angle
|
70Degree
|
|
Audio
|
Input/Output
|
Linear Input/Output, which can realize two-way voice the intercom
|
|
Audio Compression
|
G.711/G.726, Audio sampling Bit rate 128kbps ~ 2.048Mbps
|
|
Video
|
Image Compression
|
H.264
|
|
Light Frequency
|
50Hz, 60Hz
|
|
Image Resolution
|
720p（1280*720），VGA（640*480），QVGA（320*240）
|
|
Image frame rate
|
25fps(50Hz), 30fps(60Hz),Down adjustable
|
|
View
|
H.264 dual streaming
|
|
Image adjust
|
The brightness, contrast, saturation, chromaticity, is adjustable
|
|
White balance
|
Automatic, Indoor, outdoor , is adjustable
|
|
Infrared mode
|
Automatic , manual (on/off)
|
|
Night visibility
|
Φ5mm 11 IR LEDs, Night visibility up to 8 metres
|
|
Network
|
Ethernet
|
One 10/100Mbps RJ-45
|
|
Supported Protocol
|
TCP/IP、UDP/IP、HTTP、SMTP、FTP、DHCP、DDNS、UPNP
|
|
Wireless Standard
|
WIFI(IEEE802.11b/g/n)
|
|
Data Rate
|
802.11b: 11Mbps(Max.) 802.11g: 54Mbps(Max.)
802.11n: 150Mbps（Max.）
|
|
Support IP address
|
static IP address, dynamic IP address
|
|
Alarm
|
Alarm detection
|
The motion detecting, detection threshold Settings
|
|
Alarm inform
|
Support Email、FTP etc alarm inform way
|
|

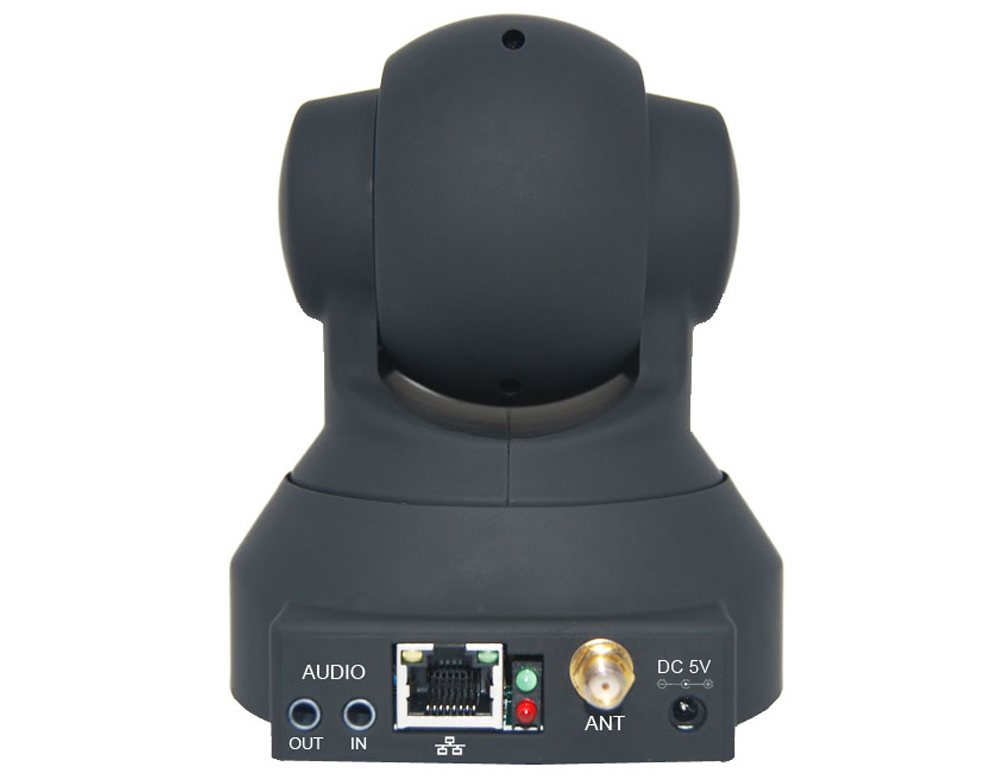

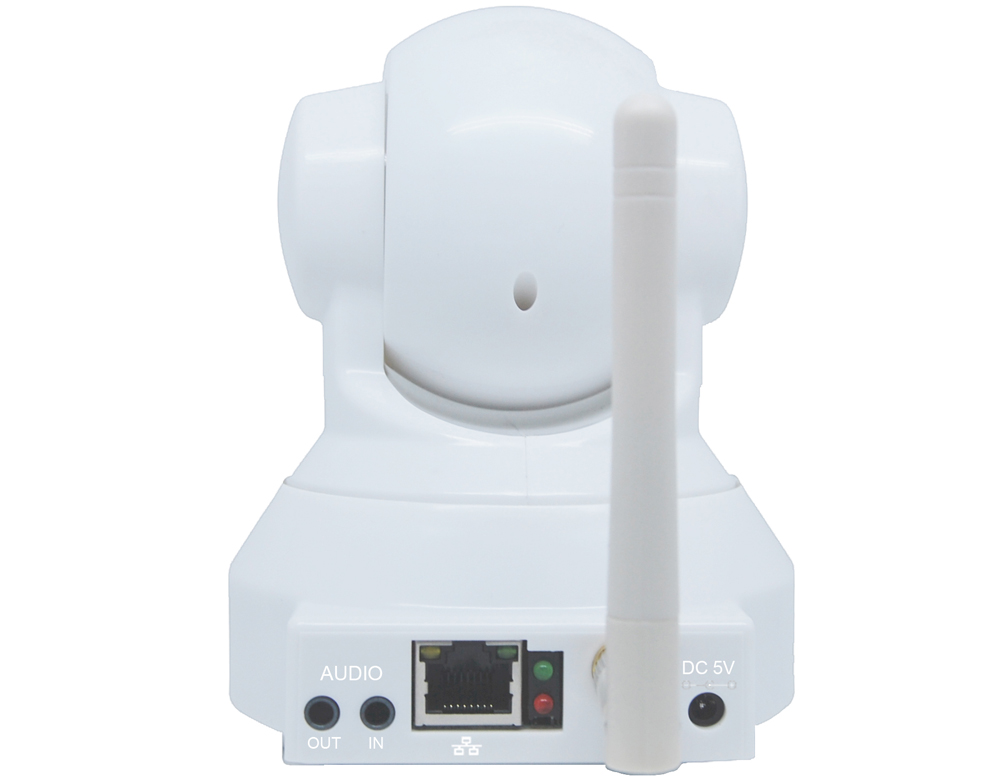

Hardware Interface
|
Memory
|
/
|
|
POWER Interface
|
DC 5V/2.0A (EU,US,AU adapter or other types optional) ，
Power Consumption ﹤8 Watts
|
|
Audio Input/Output Interface
|
One audio input jack,One audio outputt jack.
|
|
Reset Buttons
|
One Reset
|
|
Ethernet
|
One 10/100Mbps RJ-45
|
|
Wireless Interface
|
WIFI antenna
|
|
Other
|
Pan/Tilt Angle
|
Horizontal:300° & Vertical: 120°
|
|
LED Explain
|
One SD CARD Instructions，One power Instructions
|
|
Environment
|
Operate Temp
|
-20° ~ 55°C (32°F ~ 131°F)
|
|
Operate Humidity
|
10% ~ 80% non-condensing
|
|
Storage Temp
|
-20°C ~ 60°C(14°F ~ 140°F)
|
|
Storage Humidity
|
0% ~ 90% non-condensing
|
|
Physical
|
Dimension(LxWxH)
|
110.5*103*127mm
|
|
Gross Weight
|
768g(color box size:200*120*175mm)
|
|
Net Weight
|
418g
|
|
PC Requirements
|
CPU
|
2.0GHz or above (suggested 3.0GHz)
|
|
Memory Size
|
256MB or above (suggested 1.0GHz)
|
|
Display Card
|
64MB or above
|
|
Supported OS
|
Microsoft Windows 2000/XP, Vista, Windows7, Mac OS, Linux
|
|
Browser
|
IE6 and above version or compatible browser,Firefox or other standard browsers
|
|
Certification
|
CE,FCC
|
|
Warranty
|
Limited 2-year warranty
|
