ITEMS
|

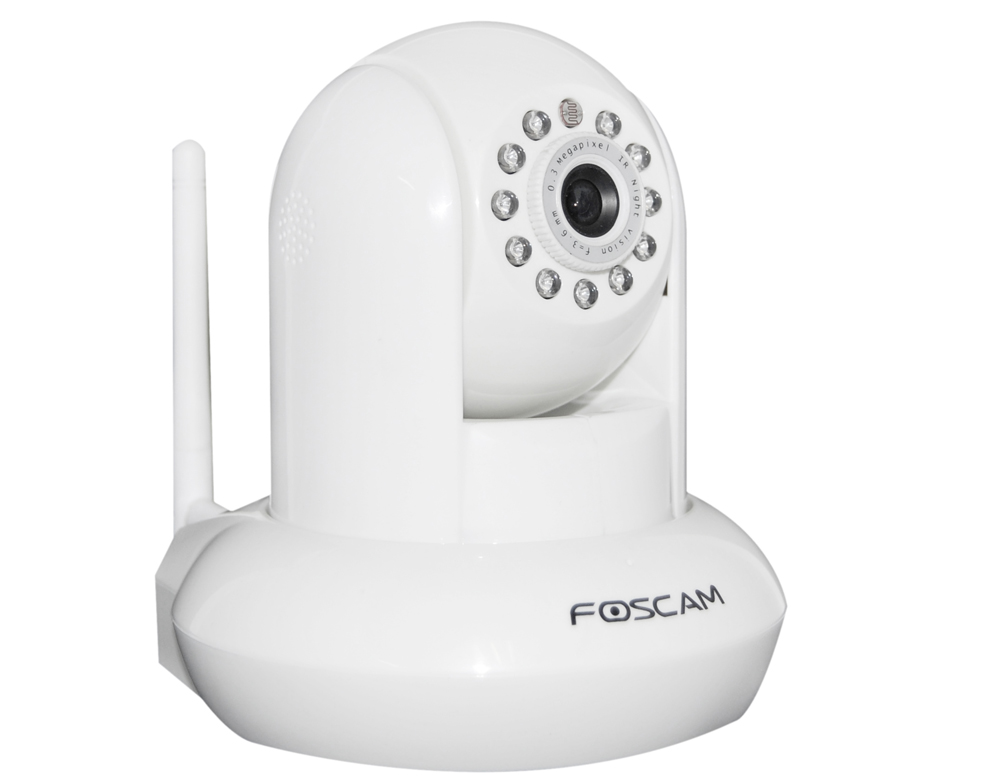

FI8608W
|
|
Image Sensor
|
Image Sensor
|
CMOS Sensor
|
|
Display Resolution
|
640*480 Pixels(300k Pixels)
|
|
Lens
|
f: 3.6mm（Viewing Angle 67°）, F:2.4 (IR Lens)
|
|
Mini. Illumination
|
0.5Lux
|
|
Audio
|
Input/Output
|
Linear Input/Output, which can realize two-way voice the intercom
|
|
Audio Compression
|
G.711/G.726, Audio sampling Bit rate 128kbps ~ 2.048Mbps
|
|
Video
|
Image Compression
|
H.264
|
|
Light Frequency
|
50Hz, 60Hz
|
|
Image Resolution
|
VGA（640*480），QVGA（320*240），QQVGA（160*120）
|
|
View
|
H.264 dual streaming
|
|
Image adjust
|
The brightness, contrast, saturation, chromaticityt, is adjustable
|
|
White balance
|
Automatic, Indoor, outdoor , is adjustable
|
|
Infrared mode
|
Automatic , manual (on/off)
|
|
Night visibility
|
Φ5mm 11 IR LEDs, Night visibility up to 8 metres
|
|
Network
|
Ethernet
|
One 10/100Mbps RJ-45
|
|
Supported Protocol
|
TCP/IP、UDP/IP、HTTP、SMTP、FTP、DHCP、DDNS、UPNP
|
|
Wireless Standard
|
WIFI(IEEE802.11b/g/n)
|
|
Data Rate
|
802.11b:11Mbps(Max.) 802.11g:54Mbps(Max.)
802.11n: 150Mbps(Max.)
|
|
Support IP address
|
static IP address, dynamic IP address
|
|
Alarm
|
Alarm detection
|
The motion detecting, detection threshold Settings
|
|
Alarm inform
|
Support Email、FTP etc alarm inform way
|
|
Hardware Interface
|
SD CARD
|
SD CARD (Support to 32G)
|
|
POWER Interface
|
DC 5V/2.0A (EU,US,AU adapter or other types optional),
|
|
Power Consumption ﹤8 Watts
|
|
Audio Input/
|
One audio input jack,One audio outputt jack.
|
|
Output Interface
|
|
Reset Buttons
|
One Reset
|
|
Ethernet
|
One 10/100Mbps RJ-45
|
|
Wireless Interface
|
WIFI antenna
|
|
Other
|
Pan/Tilt Angle
|
Horizontal:300° & Vertical: 120°
|
|
LED Explain
|
One SD CARD Instructions，One power Instructions
|
|
Physical
|
Dimension
|
117(L) x114(W) x129mm(H)
|
|
Gross Weight
|
814g (Color Box Size:245x145x165mm)
|
|
Net Weight
|
348g (accessories included)
|
|
Environment
|
Operate Temper
|
-20° ~ 55°C (- 4°F ~ 131°F)
|
|
Operate Humidity
|
20% ~ 85% non-condensing
|
|
Storage Temper
|
-20° ~ 60°C (- 4°F ~ 140°F)
|
|
Storage Humidity
|
0% ~ 90% non-condensing
|
|
PC Requirements
|
CPU
|
2.0GHZ or above (suggested 3.0GHz)
|
|
Memory Size
|
256MB or above (suggested 1.0GHz)
|
|
Display Card
|
64M or above
|
|
Supported OS
|
Microsoft Windows 2000/XP,Vista,Windows7,Mac OS,Linux
|
|
Browser
|
IE6 and above version or compatible browser,
|
|
Firefox or other standard browsers
|
|
Certificate
|
CE,FCC
|
CE,FCC
|
|
Warranty
|
Limited 2-year warranty
|
