FAQ

How to assign a static IP Address for HD camera

Suitable for all HD cameras.

Method 1: Configure IP in IP Camera Tool

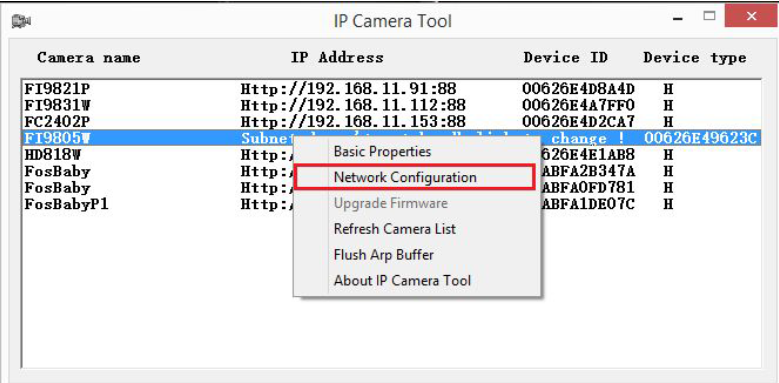

Step 1: Power on camera and hook it up to your router. Choose your camera IP and then

right click it and go to Network Configuration;

Note: Someone may find an error message “Subnet doesn’t match, dbclick to change”,

the issue can be addressed by following the steps below to assign a static IP manually.

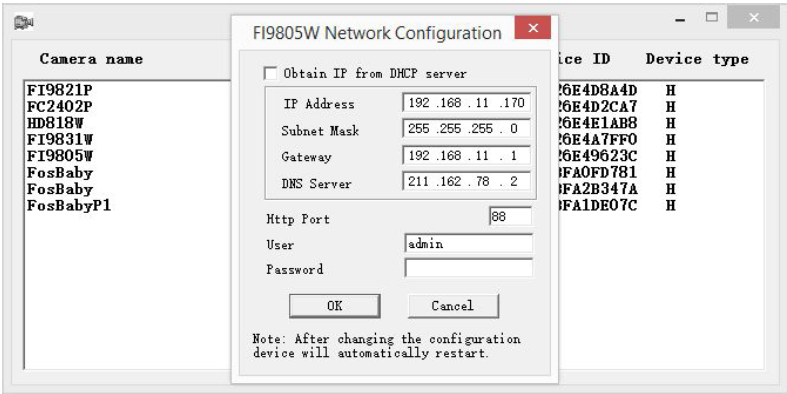

Step 2: Set a proper IP address for camera.

Preparation:

1. Access to the router your camera connected;

2. Go to the Status/Overview/Summary menu;

3. Find and write down the Gateway and DNS server your router having;

4. Then go to DHCP list, it will tell you how many devices are connecting to this router.

Set IP address for camera:

1. The first three numbers of camera’s IP address are the same as router which the

camera is connected, the last number is between 1~255 and it’s unique on this

network;

2. Subnet mask is 255.255.255.0;

3. Gateway and DNS Servers should be the ones you have found;

4. Set an unique http port number for camera, better to choose a four digital one, like 9821;

5. Enter camera’s user and password, and then click OK to save the settings. The default user is ‘admin’ and password is blank.

Method 2: Set static IP address on web interface---need to access your camera first.

Step 1: Log into camera, and go to Settings---> Network---> IP Configuration menu.

And un-check the Obtain IP from DHCP.

1. The first three numbers of camera’s IP address are the same as router which the camera is connected. The last number is between 1~255 and it should be unique in this network;

2. Subnet mask is 255.255.255.0;

3. Gateway and DNS Servers are both the IP address of the router;

4. Save the settings.
